CWE Views

Overview

This section covers "The MITRE CWE “View” Methods" listed on the MITRE CVE → CWE "Root Cause Mapping" Guidance page.

A "View allows easier navigation of the CWE list according to a specific point of view."

There are many other additional views e.g.

  1. Weaknesses in the 2024 CWE Top 25 Most Dangerous Software Weaknesses
  2. Seven Pernicious Kingdoms per Katrina Tsipenyuk, Brian Chess and Gary McGraw. "Seven Pernicious Kingdoms: A Taxonomy of Software Security Errors". NIST Workshop on Software Security Assurance Tools Techniques and Metrics. NIST. 2005-11-07
  3. Quality Weaknesses with Indirect Security Impacts

CWE Views

Developer View (View-699)

This View organizes a subset of ~400 CWEs around concepts that are frequently used or encountered in software development. By design, this view is only 2 levels deep. The top level has categories of developer-friendly concepts to facilitate easier navigation (remember: never map a vulnerability to a CWE Category). The second level contains Base level weaknesses.

CWE Software Assurance Trends View (View-1400) view contains every CWE. CWEs are organized into 22 high-level categories of interest to large-scale software assurance research to support the elimination of weaknesses using tactics such as secure language development. This view is structured with categories at the top level, with a second level of only weaknesses.

Research View (View-1000)

This View also contains every CWE. It has a deep tree structure, beginning with 10 high-level Pillars. It might be especially useful when you are looking for unusual weaknesses, as you could perform a top-down search.

This view is intended to facilitate research into weaknesses, including their inter-dependencies, and can be leveraged to systematically identify theoretical gaps within CWE. It is mainly organized according to abstractions of behaviors... https://cwe.mitre.org/data/definitions/1000.html

This view uses a deep hierarchical organization, with more levels of abstraction than other classification schemes. The top-level entries are called Pillars. Where possible, this view uses abstractions that do not consider particular languages, frameworks, technologies, life cycle development phases, frequency of occurrence, or types of resources. It explicitly identifies relationships that form chains and composites, which have not been a formal part of past classification efforts. Chains and composites might help explain why mutual exclusivity is difficult to achieve within security error taxonomies. This view is roughly aligned with MITRE's research into vulnerability theory, especially with respect to behaviors and resources. Ideally, this view will only cover weakness-to-weakness relationships, with minimal overlap and zero categories. It is expected to include at least one parent/child relationship for every weakness within CWE. https://cwe.mitre.org/data/definitions/1000.html

NVD View (View-1003)

This View organizes a subset of ~130 CWEs most commonly seen in the National Vulnerability Database (NVD).

Example using CWE-121 Stack-based Buffer Overflow

Developer View (View-699)

CWE-121 Stack-based Buffer Overflow is not part of Developer View (View-699).

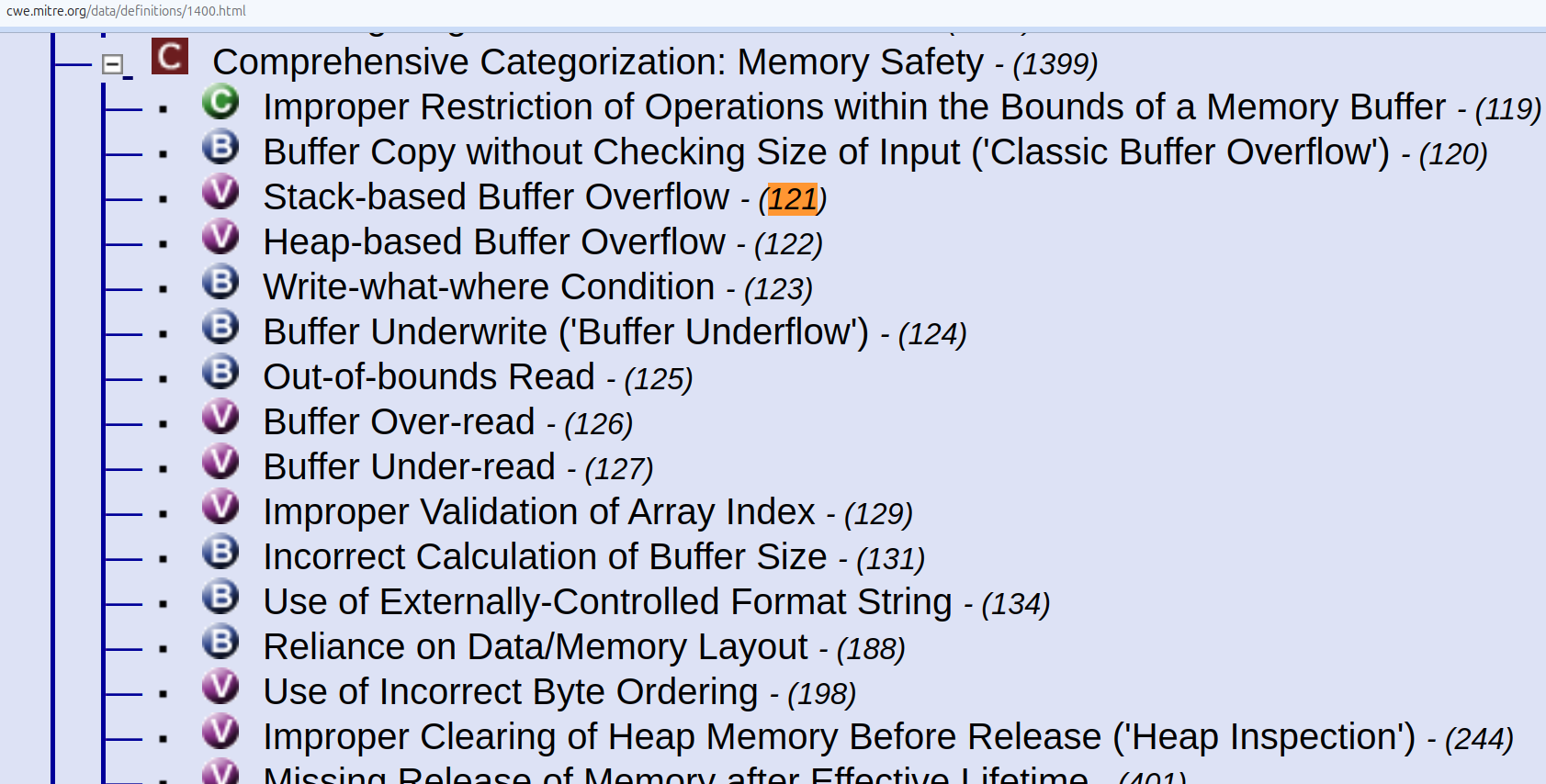

CWE-121 Stack-based Buffer Overflow is part of Software Assurance Trends View (View-1400).

View-1400

Research View (View-1000)

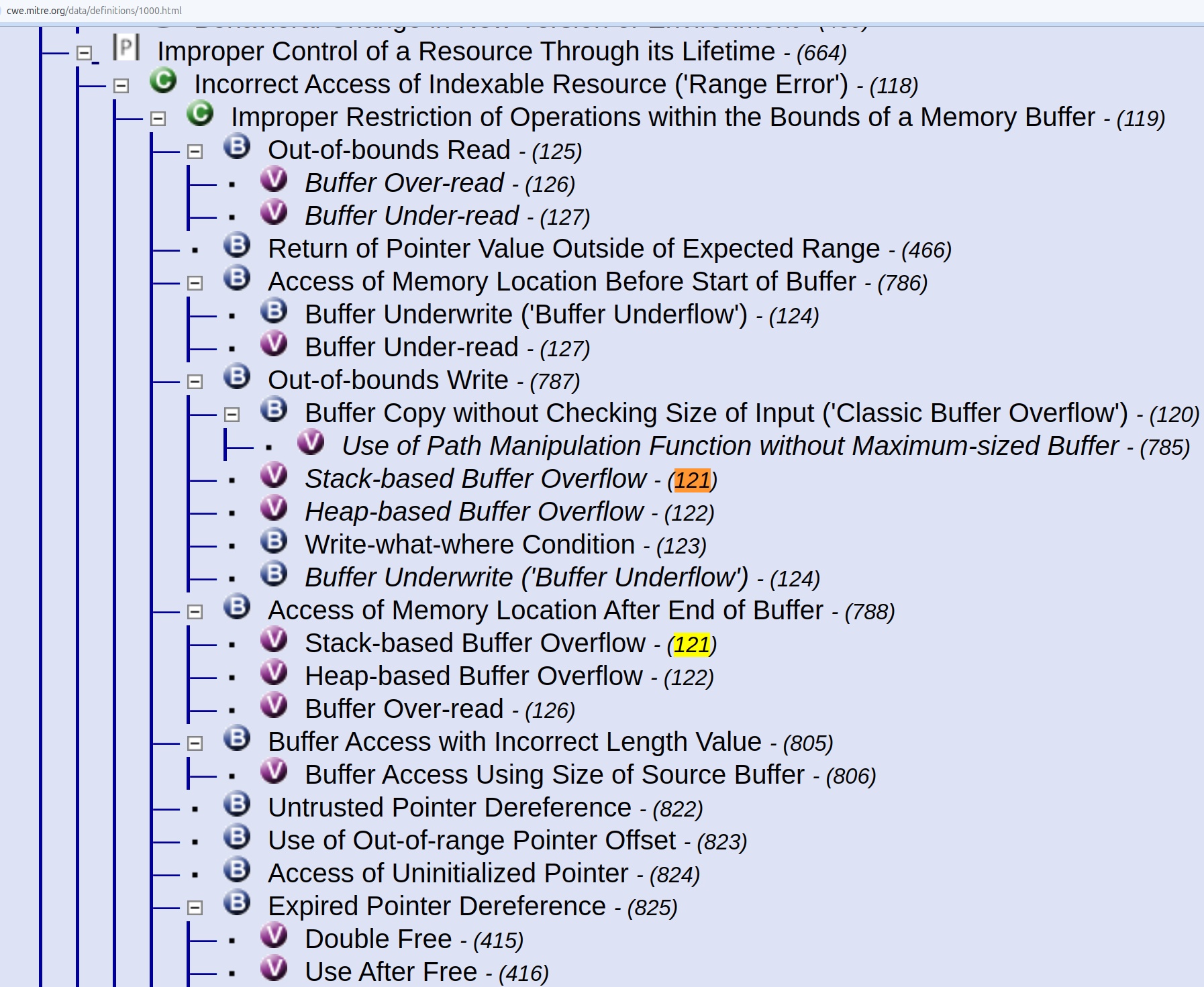

CWE-121 Stack-based Buffer Overflow is part of Research View (View-1000).

View-1000

Note

Some CWEs appear more than once i.e. the same CWE may have different parents e.g. CWE-121, CWE-122 both appear twice in the diagram above.

NVD View (View-1003)

CWE-121 Stack-based Buffer Overflow is not part of NVD View (View-1003).

Example using CWE-798 Use of Hard-coded Credential

CWE-798 is a child of three different nodes:

  1. CWE-1391 (Use of Weak Credentials) under Pillar CWE-284: Improper Access Control
  2. CWE-671 (Lack of Administrator Control over Security) under Pillar CWE-710: Improper Adherence to Coding Standards
  3. CWE-344 (Use of Invariant Value in Changing Context) under Pillar CWE-693: Protection Mechanism Failure

Research View (View-1000)

The Research Concepts view (CWE-1000) organizes all weakness CWEs by the method through which an exploitation can occur.

Research View (View-1000) contains all CWEs and uses a deep hierarchical organization, with more levels of abstraction than other classification schemes.

  • While Software Assurance Trends View (View-1400) contains all CWEs, it is only 2 levels deep.

The Research view was built to maximize mutual exclusivity, repeatability and clarity — it’s the canonical, theory-driven taxonomy.

Quote

The Research view is mainly organized according to abstractions of software behaviors and the resources that are manipulated by those behaviors, which aligns with MITRE's research into vulnerability theory. In addition to classification, the Research view explicitly models the inter-dependencies between weaknesses, which have not been a formal part of past classification efforts. The main examples are chains and composites.

The view uses multiple deep hierarchies as its organization structure, with more levels of abstraction than other classification schemes.

https://cwe.mitre.org/documents/views/view-evolution.html

Repeatability

Quote

the Research view seeks to achieve repeatability, although strong technical knowledge and an understanding of chains is required. Repeatability has been informally verified in many situations in which two separate CWE team members classified issues the same way. However, there are limits - ambiguous classification can still happen because of perspective issues or incomplete parts of the hierarchy.

In the case of the Development view, it is hoped that the large number of navigation categories will make it easier for people to reach the desired weakness ID. However, with so many categories, there is a risk of incomplete or incorrect mappings if one user follows one path of the tree, and another mapper follows a different path.

https://cwe.mitre.org/documents/views/view-comparison.html#Repeatable

Visualization

MITRE CWE provides visualizations on https://cwe.mitre.org/data/pdfs.html.

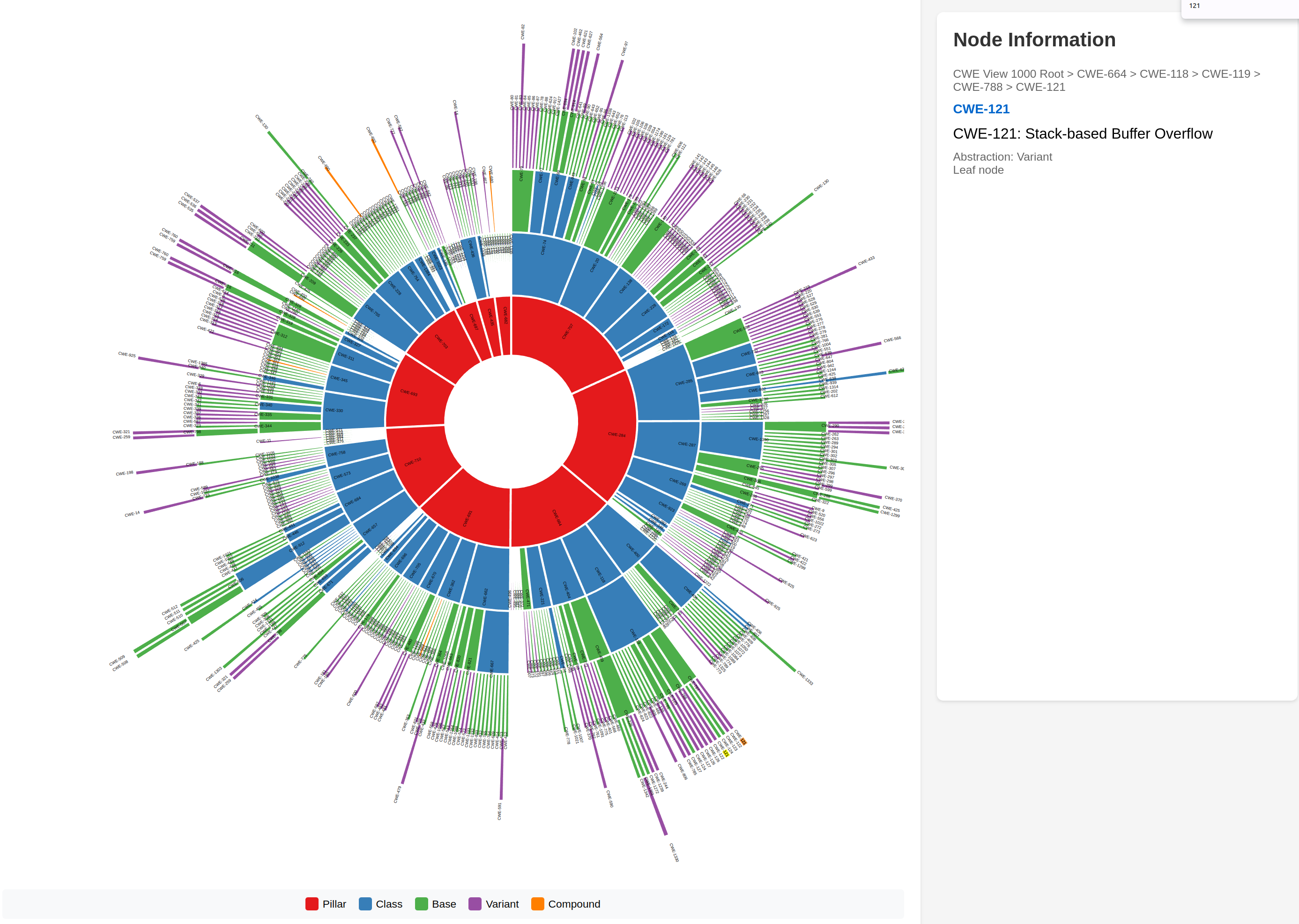

The Research View (View-1000) is very detailed. To get a visual overview of it, a sunburst diagram is created.

Tip

View-1000

Some things that become visible:

  • The max depth of CWEs is 6 i.e. 6 concentric circles, the min depth is 4 (for CWE-682)
  • The depth varies per pillar.
  • The CWE Abstractions (Pillar, Class,...) are clear (Color-Coded)
  • Some Pillars are deeper and broader than others i.e. have more CWEs
    • Pillar CWE-682 has the least descendants and least depth

Pillars

The children of CWE-1000 are 10 pillars that organize the weakness CWEs:

  1. Improper Access Control (CWE-284)
  2. Improper Adherence to Coding Standards (CWE-710)
  3. Improper Check or Handling of Exceptional Conditions (CWE-703)
  4. Improper Control of a Resource Through its Lifetime (CWE-664)
  5. Improper Interaction Between Multiple Correctly-Behaving Entities (CWE-435)
  6. Improper Neutralization (CWE-707)
  7. Incorrect Calculation (CWE-682)
  8. Incorrect Comparison (CWE-697)
  9. Insufficient Control Flow Management (CWE-691)
  10. Protection Mechanism Failure (CWE-693)

DAGs and CWE Research

Info

The Research View (View-1000) forms a DAG (Directed Acyclic Graph).

  • It's not a tree as some nodes, e.g. CWE-121, have multiple parents.

A tree is actually a special type of DAG with additional constraints.

  • Both structures share the property of being acyclic, meaning they don't contain any cycles or loops.

Key differences between DAG (Directed Acyclic Graph) and a tree:

  1. Structure: A tree is a hierarchical structure where each node has exactly one parent (except the root node, which has no parent). A DAG is more flexible, allowing nodes to have multiple parents.

  2. Paths: In a tree, there is exactly one path from the root to any node. In a DAG, there can be multiple paths to reach a node from another node.

  3. Connectivity: All nodes in a tree are connected. A DAG may consist of multiple disconnected components.

  4. Root: A tree has a single root node. A DAG may have multiple source nodes (nodes with no incoming edges).

  5. Branching: In a tree, a parent can have multiple children, but a child can only have one parent. In a DAG, a node can have multiple parents and multiple children.

Info

Some research on CWE and DAGs and diagrams:

  1. NIST Internal Report NIST IR 8517 Hardware Security Failure Scenarios Potential Hardware Weaknesses, November 2024, Peter Mell and Irena Bojanova
  2. A Suite of Metrics for Calculating the Most Signifcant Security Relevant Software Flaw Types, Peter Mell and Assane Gueye

  3. Representativeness in the Benchmark for Vulnerability Analysis Tools (B-VAT)

    1. note that per above, this statement is technically incorrect "The weakness hierarchy presented by view CWE-1000 can be organized into ten rooted trees"
